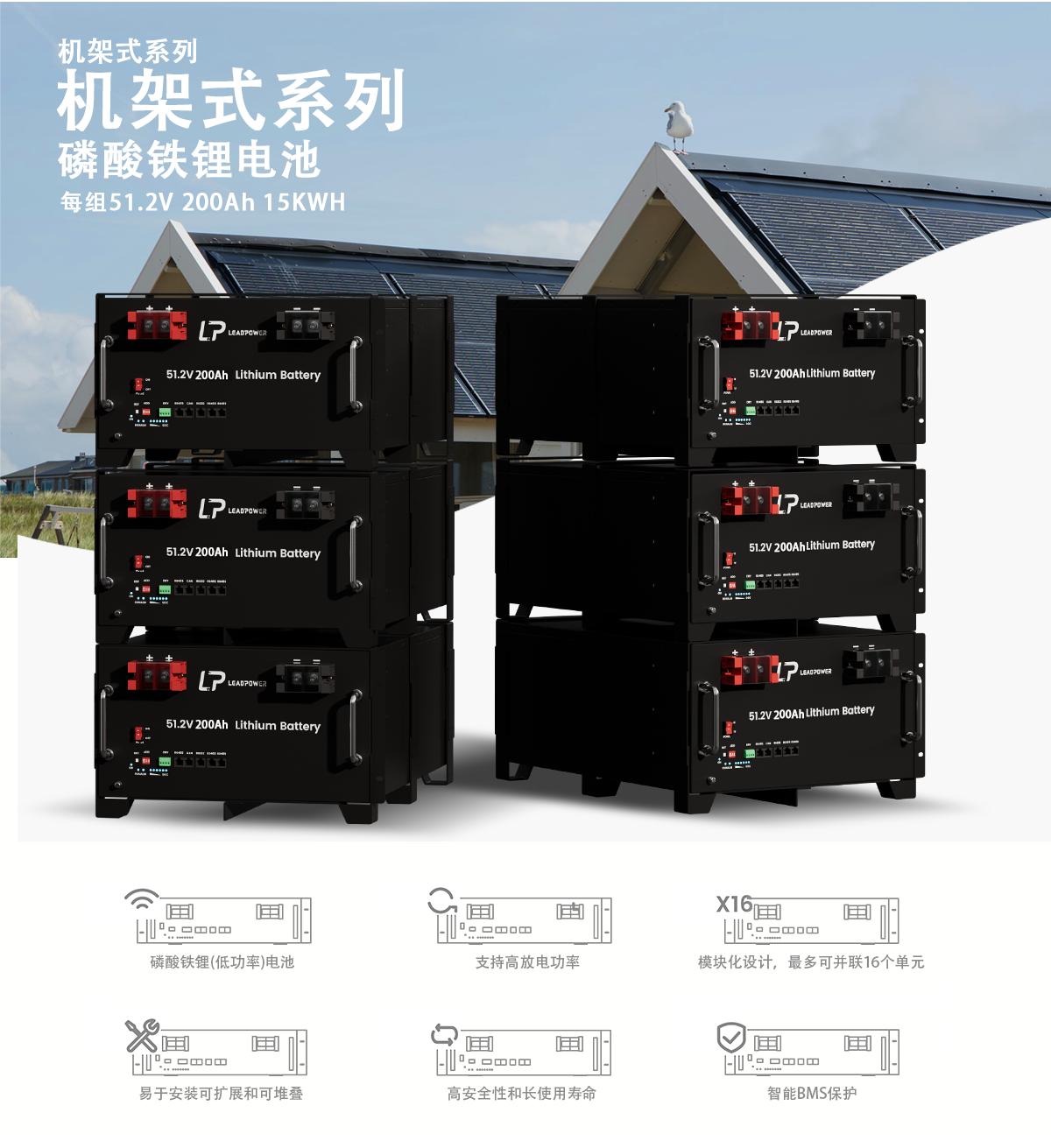

机架式储能电池
机架式储能电池
机架式储能电池
机架式储能电池
机架式储能电池

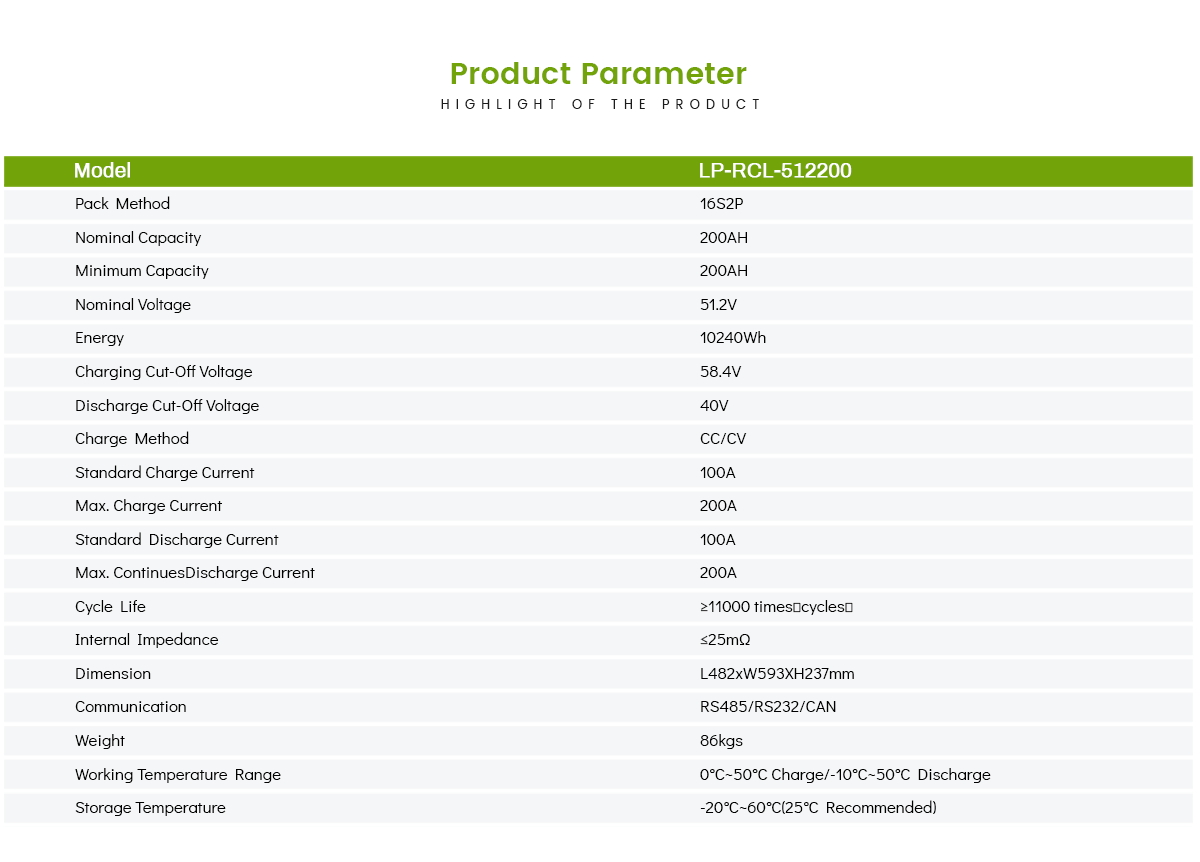

  • Models

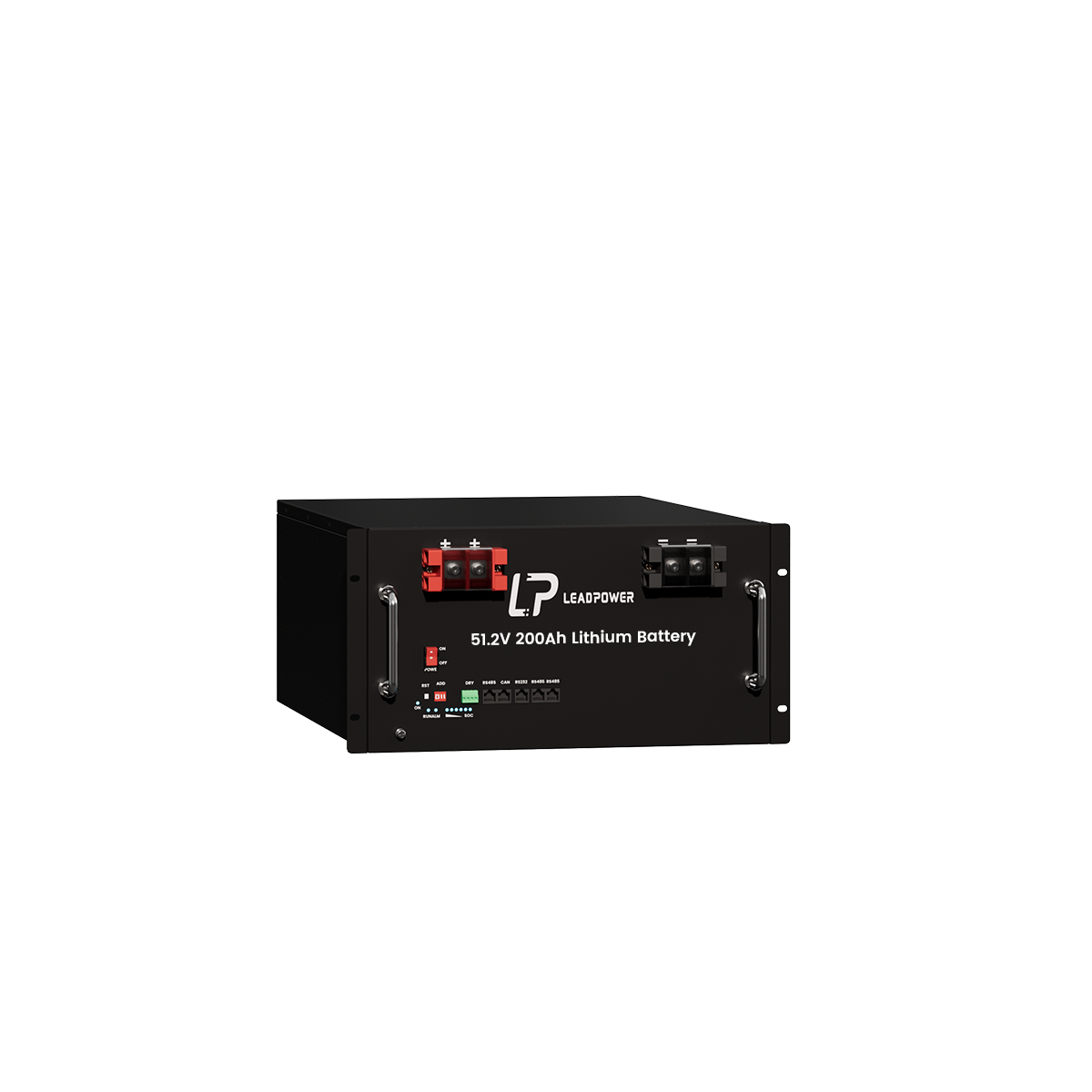

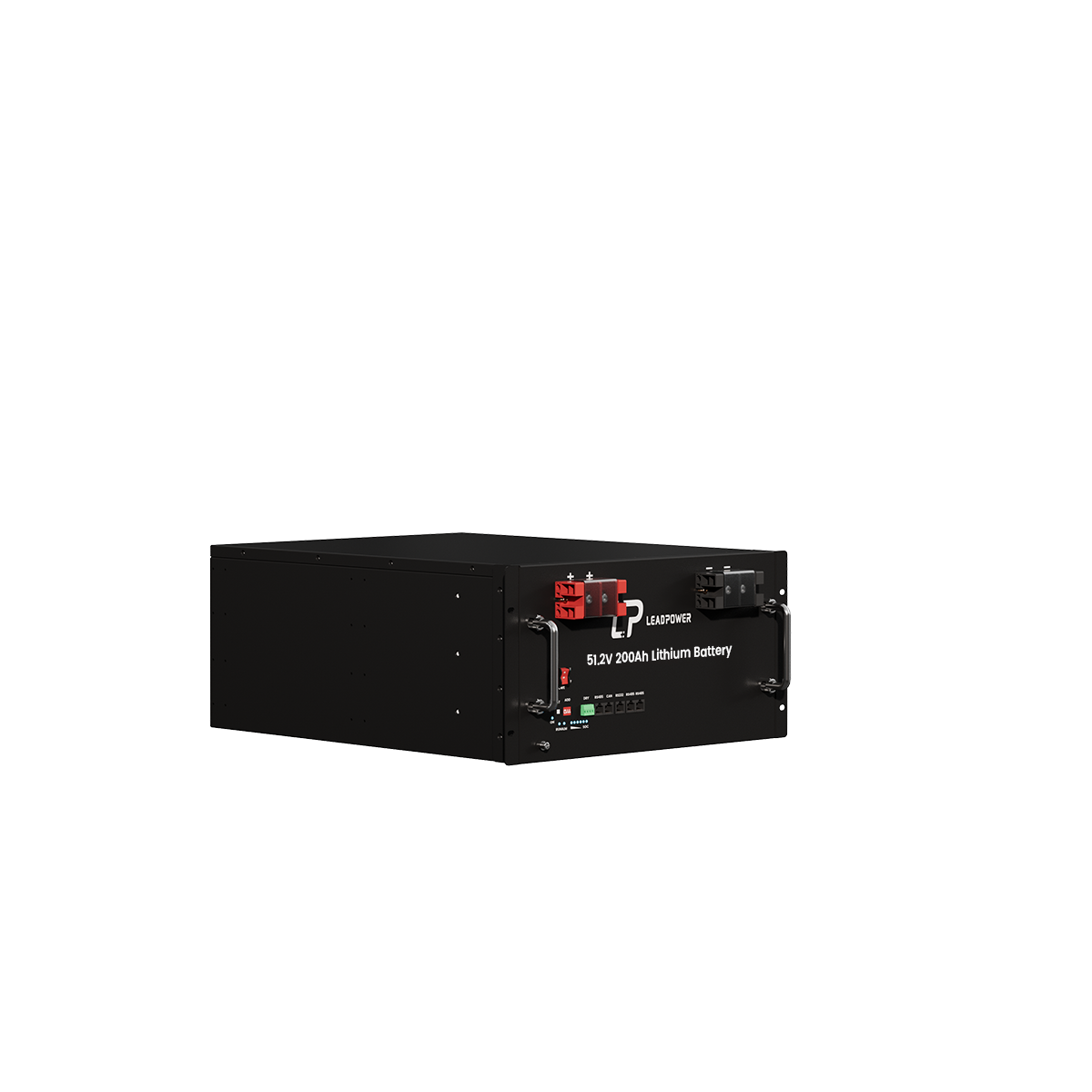

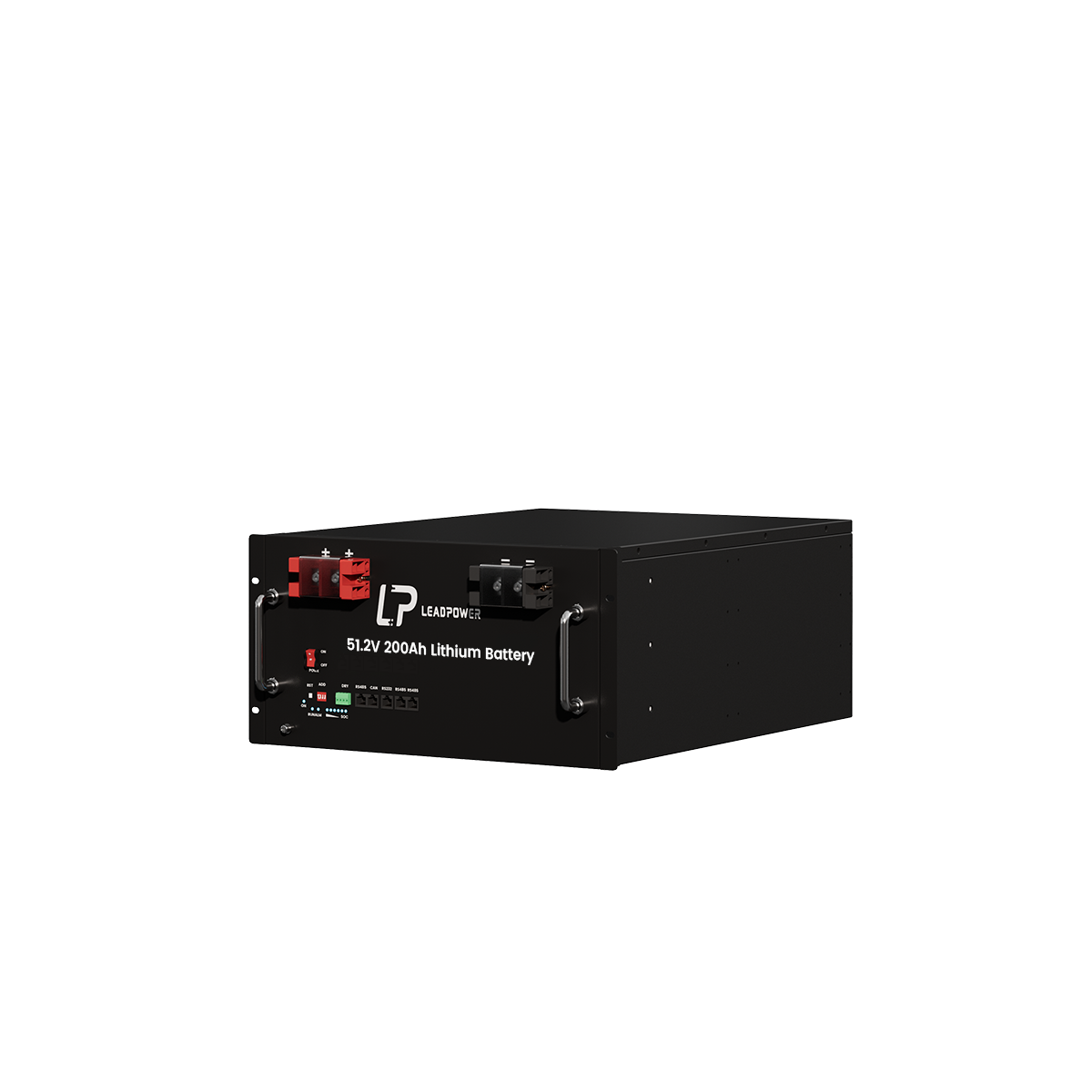

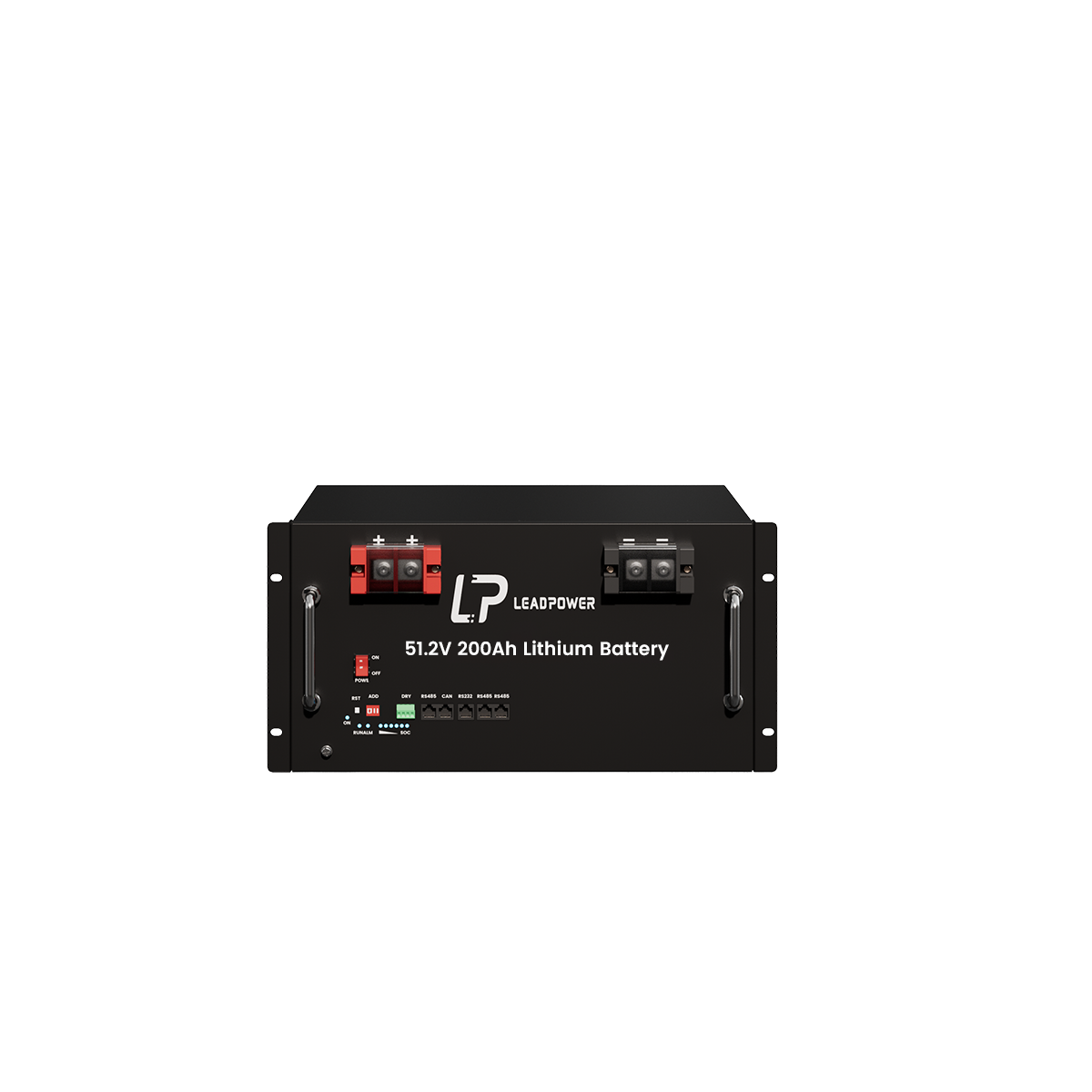

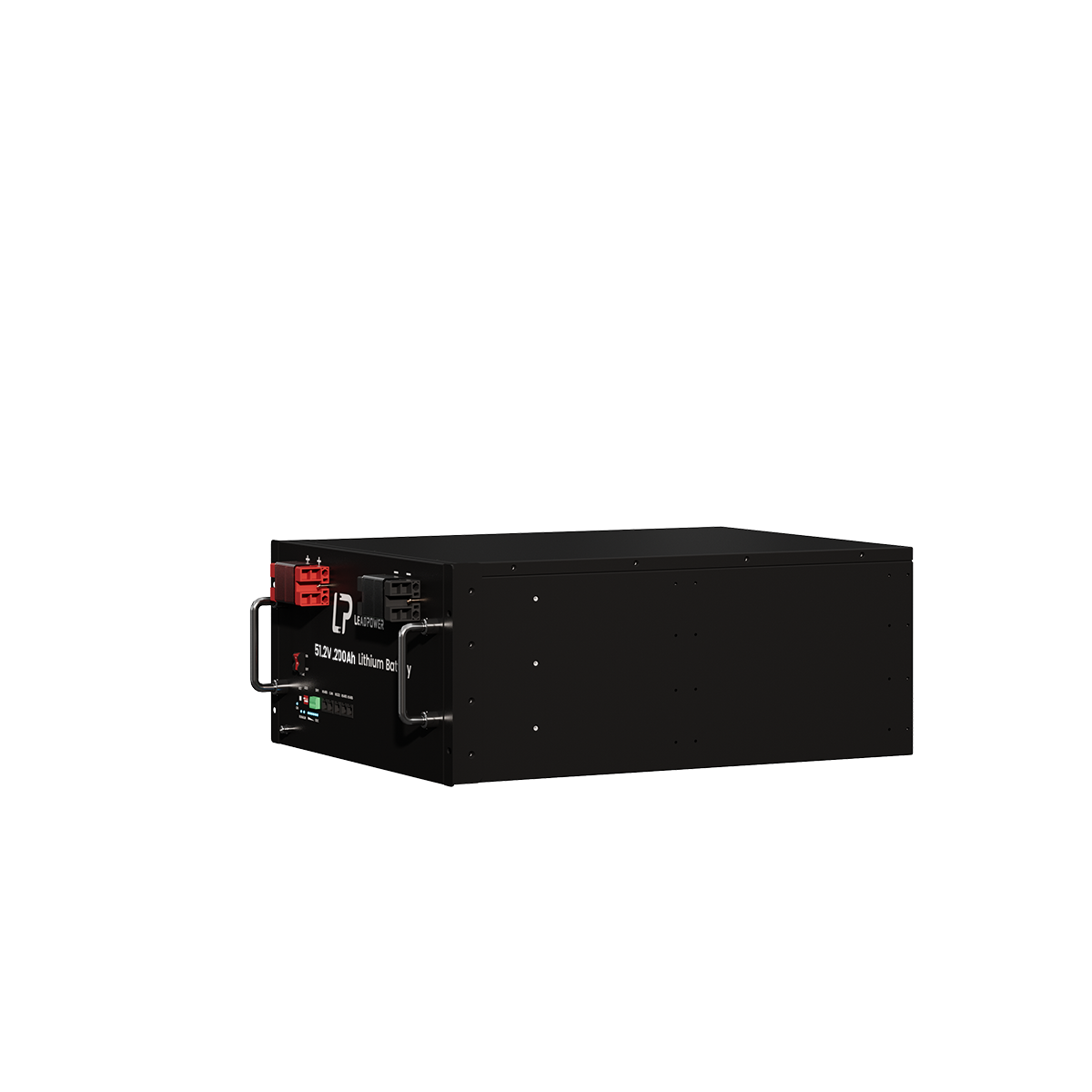

    LP-RCL-512200

  • Battery Type

    LiFePO4 Battery

  • Nominal Energy

    10.24KWH

  • Nominal Voltage

    51.2V

  • Charging Cut-Off Voltage

    58.4V

  • Nominal Capacity

    200AH

  • Discharging Cut-Off Voltage

    40V

  • Depth of Discharge

    95%

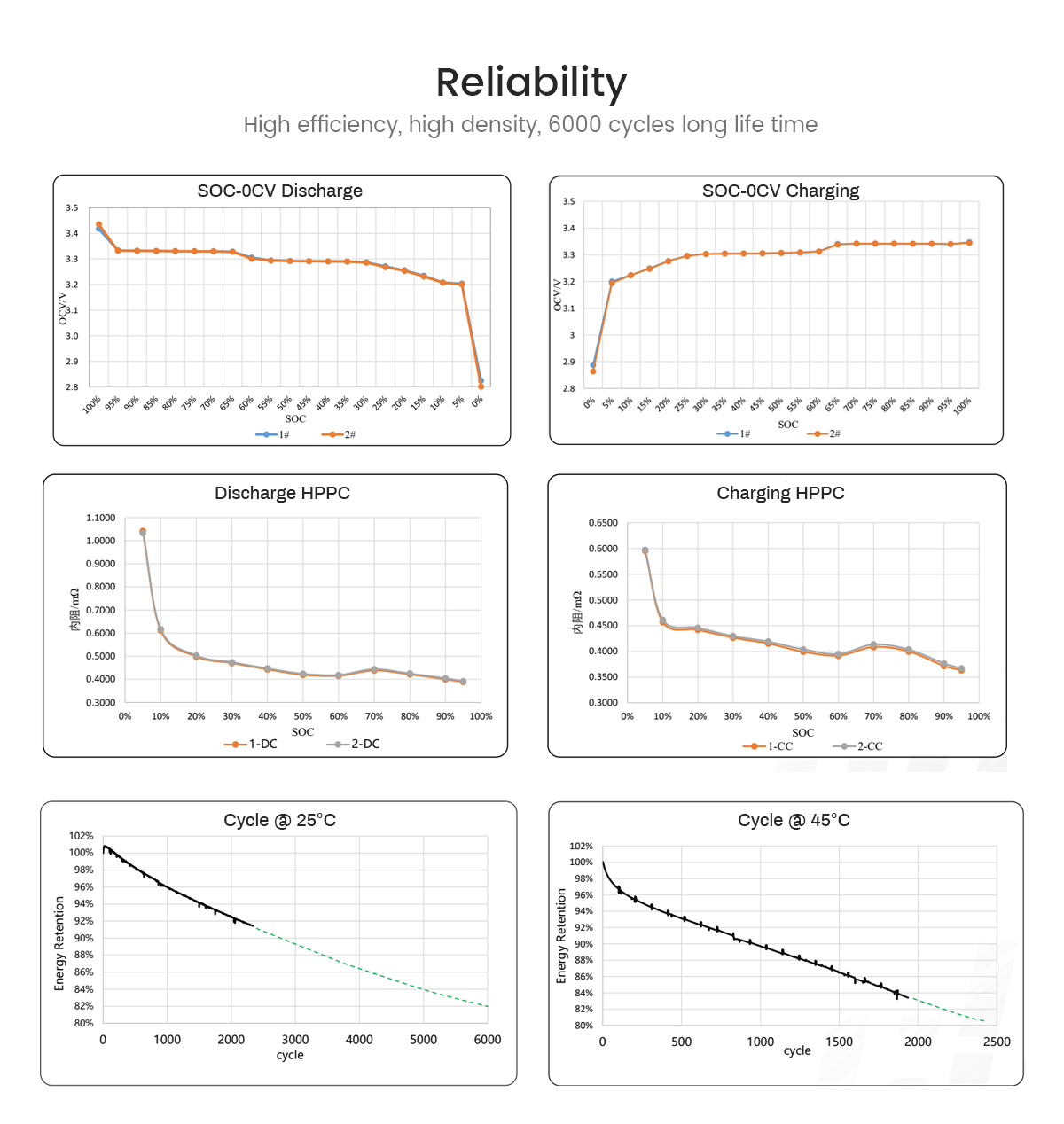

  • Cycles

    ≥11000 at 25℃

  • Certificates

    CE/UN38.3/MSDS

  • Protection Class

    IP20

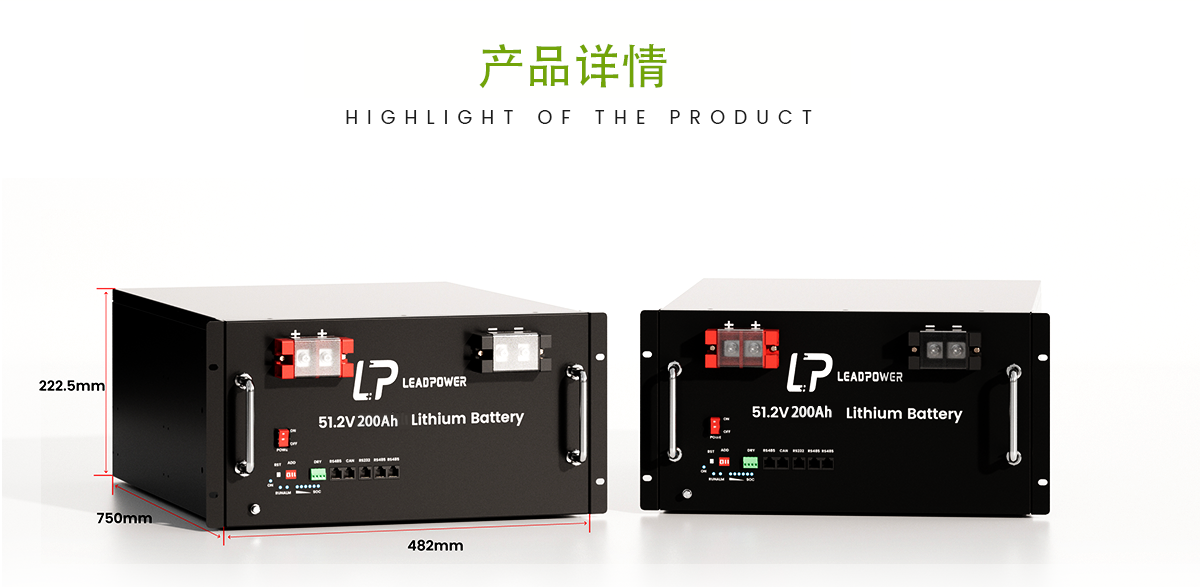

  • Size(L*W*H)

    482*593*237mm

  • Recommended Charge/Discharge Current

    100A/100A

  • Weights

    86kg

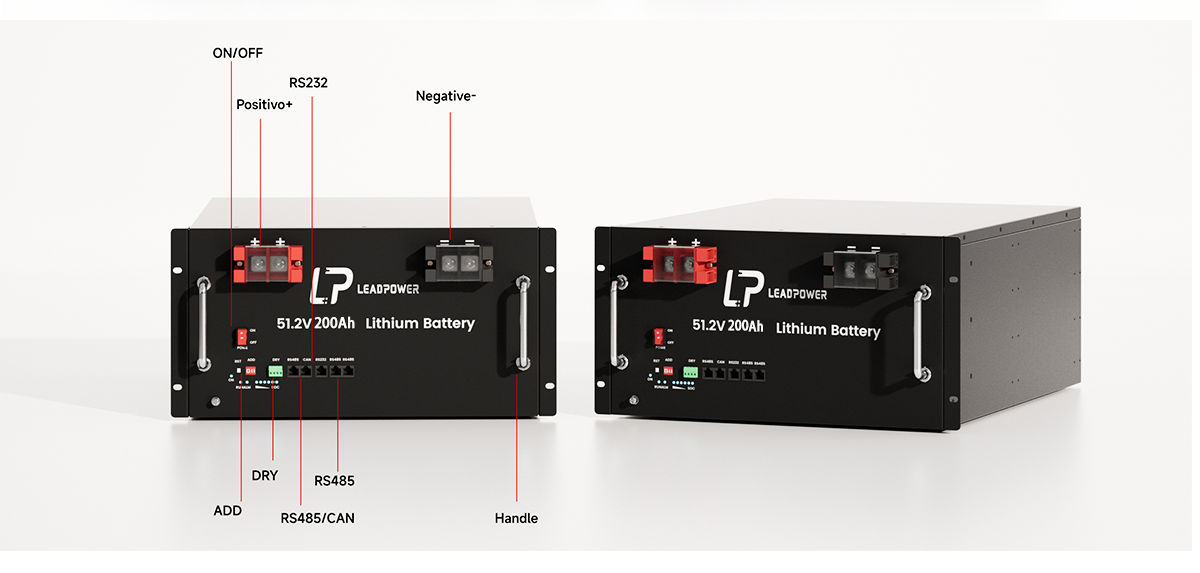

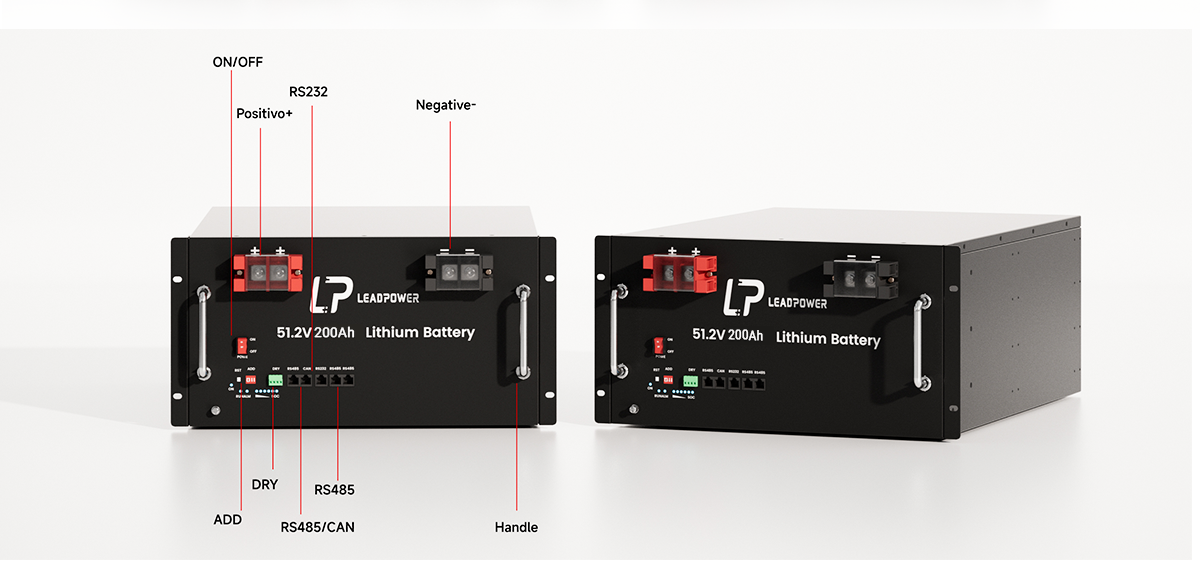

  • Communication Port

    RS232/RS485/CAN(Optional Bluetooth /Wifi)
